NMR Spectra of Lidocaine
The figures show the example NMR spectra of Lidocaine

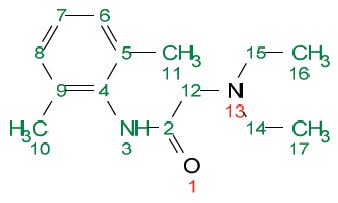

Figure 1. 1D Proton with peak assignments.
Figure 2. 1D Carbon shows peaks of all carbons (top). Spectral editing using DEPT selects signals of CH3, CH2 and CH groups (rows 2-4)
Figure 3. 2D HMQC shows single-bond proton-carbon correlations.
Figure 4. 2D HMBC shows long-range proton-carbon correlations.
