Thursday, 10 September 2015

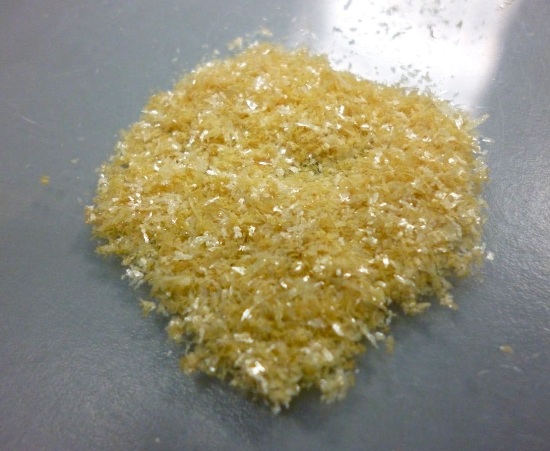

Figure 6. Recrystallized 1,5-bis(4'-methoxyphenyl)penta-1,4-dien-3-one (Product B).Figure 7 depicts the 1H NMR spectrum of 1,5-bis(4'-methoxyphenyl)penta-1,4-dien-3-one, confirming the loss of the reactive methyl centre in Product A following the reaction with p-anisaldehyde. In this case also, the 2D J-resolved and COSY experiments are used to interpret the downfield resonances between 6.82-8.02ppm (Figures 8 and 9).
Figure 7. 1H NMR spectrum of 1,5-bis(4'-methoxyphenyl)-1,4-pentadien- 3-one (Product B) in CDCI3.The J-resolved spectrum (Figure 8) differentiates 8.6Hz doublet and 16.4Hz doublet, centered at 6.90ppm. It also identifies a 16.0 Hz doublet at 7.73ppm and an 8.9Hz doublet at 7.57ppm further downfield. This data is used to determine the two spin systems in the COSY spectrum (Figure 9), one between 6.90-7.57ppm and the other between 6.90-7.73ppm. The alkene protons on C- 1/C-5 and C-2/C-4 can be allocated as 7.73ppm and 6.90ppm, respectively, while the promatic protons on C-2' and C-3' can be assigned as 7.57ppm and 6.90ppm, respectively. The magnitude of the coupling constants of H-1/H-5 and H-2/H-4 confirms the alkene’s E-geometry.
Figure 8. 2D J-resolved spectrum of 1,5-bis(4'-methoxyphenyl)-1,4-pentadien-3-one (Product B) in CDCI3.
Figure 9. COSY spectrum of 1,5-bis (4'-methoxyphenyl)-1,4-pentadien-3-one (Product B) in CDCI3.
